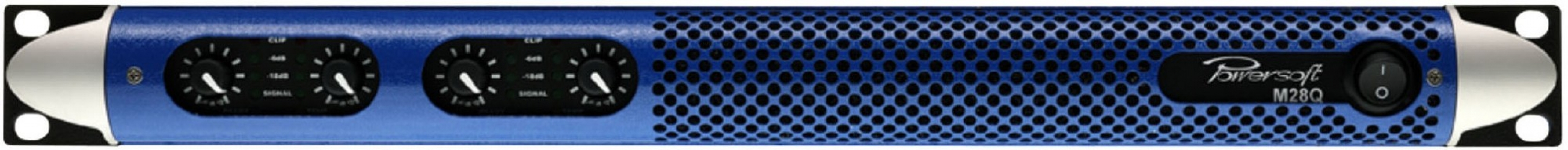

700 W at 4Ω from each of four channels with bridgeable pairs: a single M28Q is good for powering a complete little bi-amped stereo system, a 3-way mono stack of decent size, a variety of floor monitors.
All at a quality level as can be expected from Powersoft. Optimized for 4Ω loads, the M28Q is a fantastic value, practically as well as commercially.
In use worldwide by leading touring and event sound companies, Powersoft amplifiers are preferred among the top ranking system designers, sound engineers, and contractors for providing reliable premier-grade power and headroom in the smallest possible package size.
Maximum efficiency warrants minimum current draw, heat dissipation and power consumption, resulting in "green" products, saving the user a substantial amount of money over time.
Power supply
Advanced switch-mode power supply technology for high performance and compact size
Fixed frequency switch mode output
Patented output filter with ripple cancellation networkProtections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term rms (non audio) signals reducing maximum output
Thermal protection: output stages operating temperature up to 75 °C (167 °F)
Temperature controlled continous variable speed fan, front to back airflowGeneral
Compact size - all models only 1 RU for reduced rack cost and space
Light weight - all models only 7.4 kg (16 pounds) for easier racking and shipping
Neutrik XLR balanced inputs with loop thru XLR and Speakon outputs connectors
Recessed stepped attenuators
Modular construction
Full four years warranty
