DM0
Overview

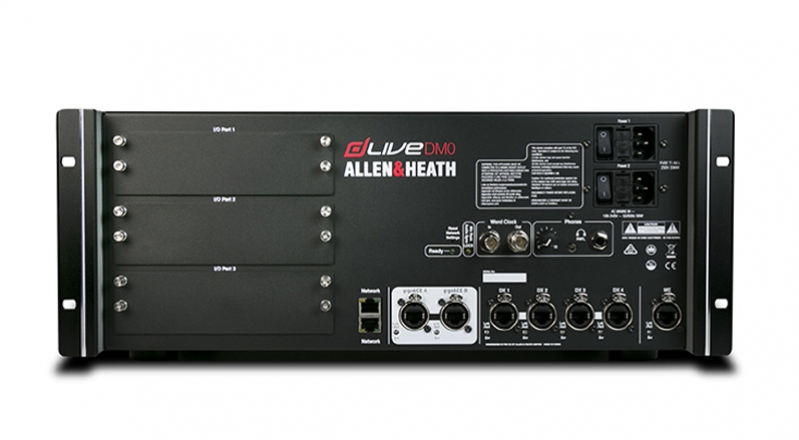

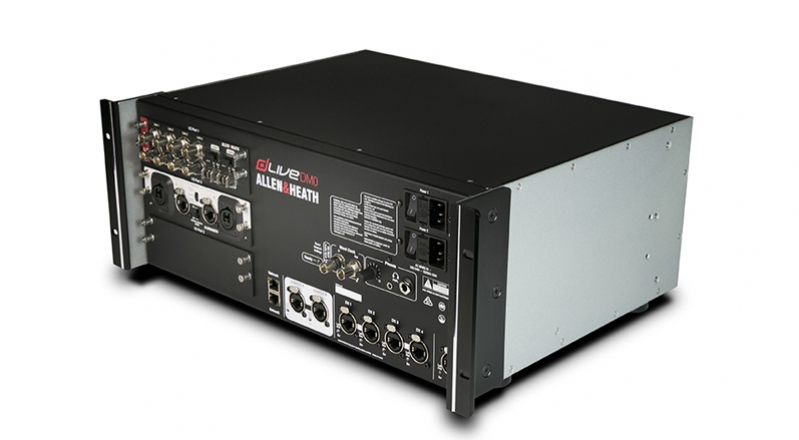

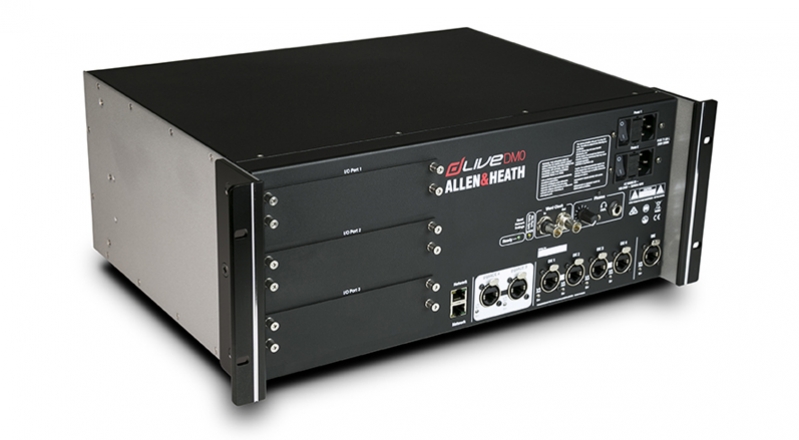

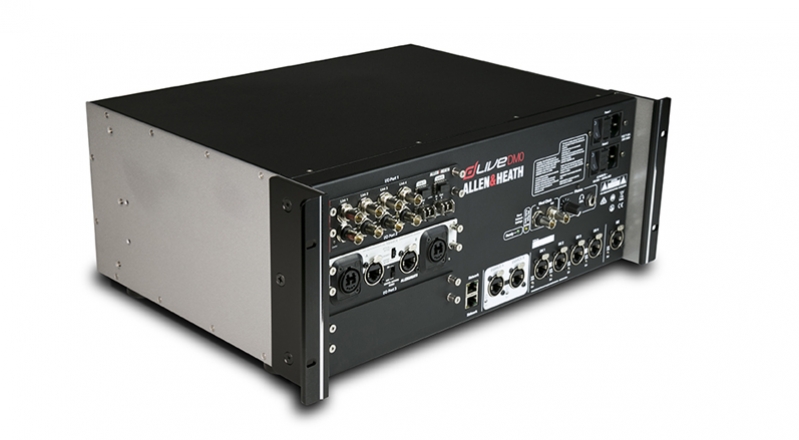

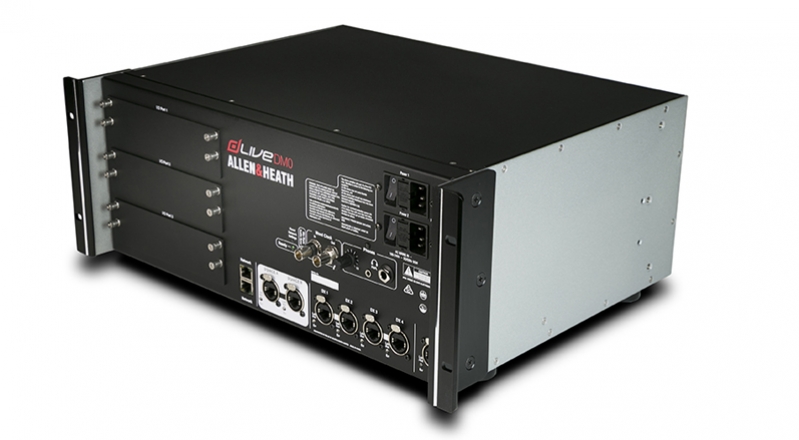

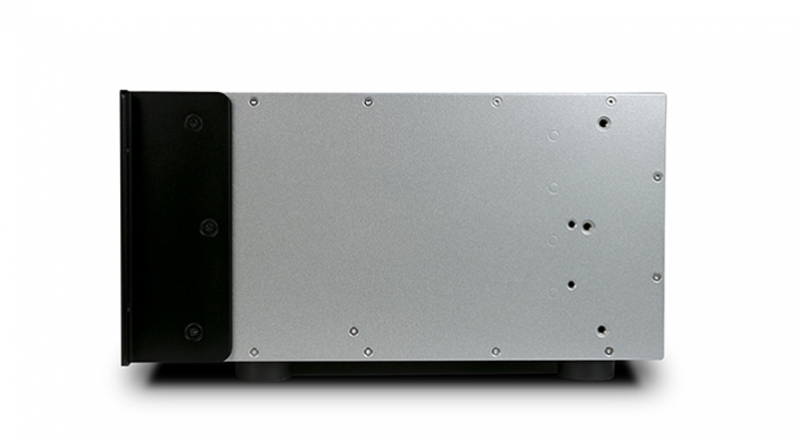

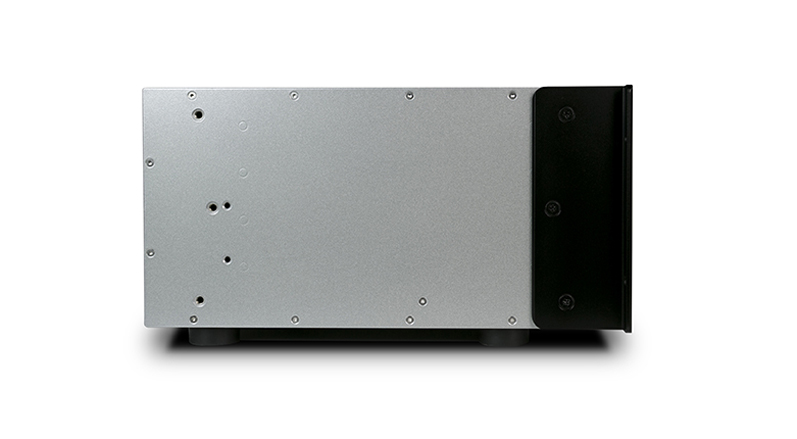

At just 4U, DM0 is the most compact dLive MixRack and is targeted at distributed audio scenarios and digital splits. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It can be controlled with a dLive Surface, using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

All dLive MixRacks feature the same mix engine and can work with the full 128 channels by adding DX expanders or digital sources.

XCVI Core
The power of dLive emanates from the XCVI Core – pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160×64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class-leading latency at an ultra-low 0.7ms.



DEEP Processing
Our DEEP processing architecture embeds class-leading compressors and processing emulations directly within dLive’s input and mix channels. An array of bespoke algorithms including graphic EQs, preamp and compressor models can be inserted on the fly without burning FX slots and without the setup, latency and licence hassles associated with external plug-ins – they’re right there, where you need them, whenever you need them. The compressor models capture the audio nuances and non-linear ballistics of industry classics, ranging from a Slow-Opto model, various RMS detection and soft knee circuits, through to super-fast peak and RMS based compression/limiting devices.



RackExtra FX
The RackExtra FX portfolio combines the pristine quality and wide choice offered by boutique plug-ins with the convenience and low latency of onboard processing. It’s no secret that we have a passion bordering on obsession for crafting painstakingly faithful emulations of the most revered outboard equipment. Drawing on the power of the XCVI Core, we have built hugely potent DSP kernels within the FPGA, allowing us to integrate our proven library of reverb, delay and modulator algorithms into dLive, with 16 FX slots available, each with a dedicated stereo return.

Specification
  • XCVI 160×64 FPGA core
    96kHz sample rate
    Variable bit-depth for ultimate precision and noise performance
    Virtually infinite mix headroom thanks to 96bit accumulator
    Class leading, ultra-low latency at 0.7ms

  • 128 Input Channels with full processing

  • 64 Mix Outputs with full processing

  • Configurable 64 bus architecture (group, FX, aux, matrix, mains)
    oLR, LCR and up to 5.1 mains mode
    oMultiple PFLs

  • 16 RackExtra FX with dedicated stereo returns

  • 24 DCAs

  • Built-in signal generator and RTA

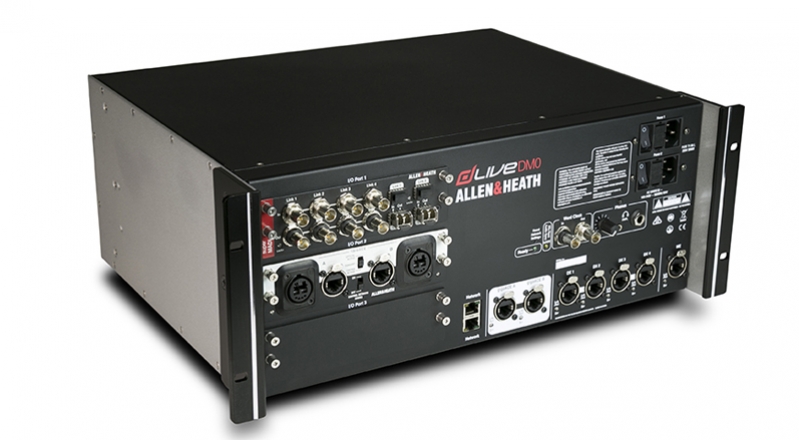

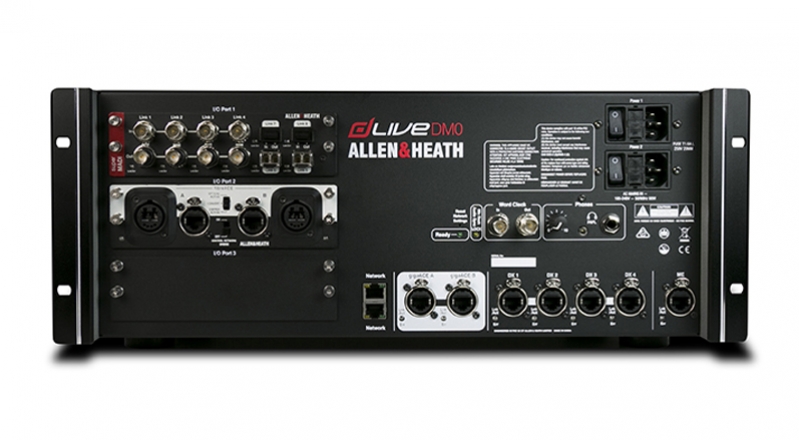

  • Connection hub
    gigaACE gigabit link to Surface
    2x DX links for I/O expansion
    I/O Port – 128 ch 96 kHz
    Dedicated ME-1 48kHz port
    2x Network ports
    Wordclock BNC I/O

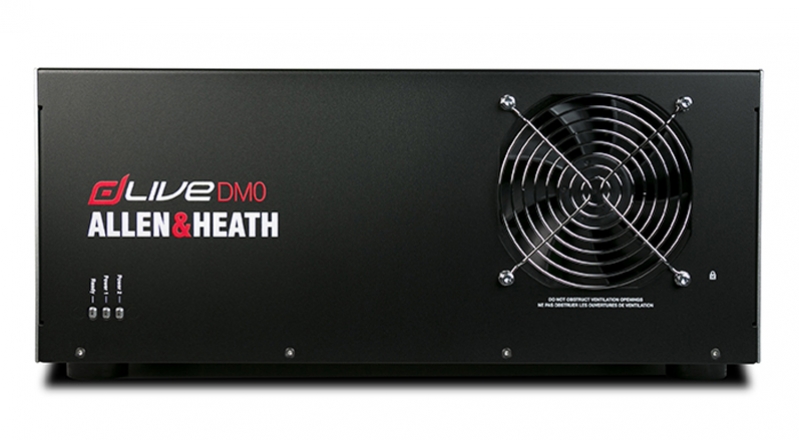

  • Flush front panel with ultra-quiet fan

  • Dual redundant power supplies

  • Reversible rack ears design
