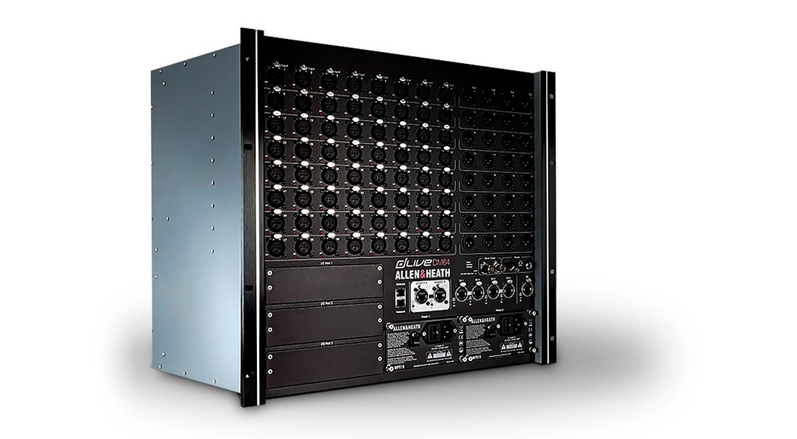

DM64
Overview

The MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

There are 3 sizes of dLive MixRack available. All feature the same mix engine and differ only in the number of analogue I/O. All models can work with the full 128 channels by adding DX expanders or patching digital sources.

XCVI CORE
The power of dLive emanates from the XCVI Core – pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160×64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class leading latency at an ultra-low 0.7ms.

DEEP PROCESSING
Our DEEP processing architecture embeds class-leading compressors and processing emulations directly within dLive’s input and mix channels. An array of bespoke algorithms including Graphic EQs and Compressor models can be inserted on the fly without burning FX slots and without the setup, latency and licence hassles associated with external plug-ins – they’re right there, where you need them, whenever you need them. The compressor models capture the audio nuances and non-linear ballistics of industry classics, ranging from a Slow-Opto model, various RMS detection and soft knee circuits, through to super-fast peak and RMS based compression/limiting devices.

RACKEXTRA FX
The RackExtra FX portfolio combines the pristine quality and wide choice offered by boutique plug-ins with the convenience and low latency of onboard processing. It’s no secret that we have a passion bordering on obsession for crafting painstakingly faithful emulations of the most revered analogue outboard equipment. Drawing on the power of the XCVI Core, we have built hugely potent DSP kernels within the FPGA, allowing us to integrate our proven library of reverb, delay and modulator algorithms into dLive, with 16 FX slots available, each with a dedicated stereo return.

BUILT TO ENDURE
Maybe it’s no coincidence that our lead mechanical designer on the dLive project used to be a tank commander. All dLive consoles have been designed to deliver the optimal balance between strength and weight, employing higher grade metal on the sides and folded steel at key points for added rigidity. Not only does every console, MixRack and expander have dual power supply slots for redundancy, but we’ve also employed the same rugged, hot-swappable PSU design across the range for maximum peace of mind and minimum inventory. Dual redundancy is also built into every audio connection throughout the system. We have also paid particular attention to console illumination, conducting rigorous trials to ensure that dLive excels in the sunny, outdoor settings where many digital consoles become almost unusable.

Specification
  • 64 mic/line inputs, 32 line outputs

  • XCVI 160×64 FPGA core
     96kHz sample rate
     Variable bit-depth for ultimate precision and noise performance
     Virtually infinite mix headroom thanks to 96bit accumulator
     Class leading, ultra-low latency < 0.7ms

  • 128 Input Channels with full processing

  • 64 Mix Outputs with full processing

  • Configurable 64 bus architecture (group, FX, aux, matrix, mains)
     LR, LCR and up to 5.1 mains mode
     Multiple PFLs

  • 16 RackExtra FX with dedicated stereo returns

  • 24 DCAs

  • Built-in signal generator and RTA

  • New preamp design for extra transparency

  • Unique Active PAD circuit for consistent performance with any source

  • Connection hub
     Dual redundant GigaACE gigabit link to Surface
     2x redundant DX links for I/O expansion
     3x I/O Ports – 128 ch 96 kHz each
     Dedicated ME-1 48kHz port
     2x Network ports
     Wordclock BNC I/O

  •  Dual redundant, hot swappable power supply

  •  Flush front panel with ultra quiet fan

  •  Reversible rack ears design
