KF695Z THREE-WAY, ARRAYABLE TRAPEZOIDAL ENCLOSURE
Overview

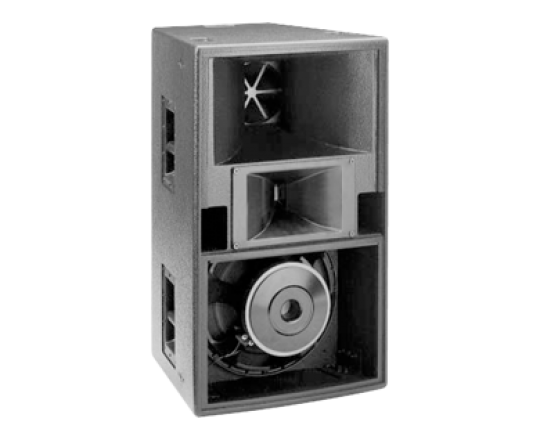

A 3-way full range system in a vented trapezoidal enclosure. Includes a 15-in woofer, vented, a horn-loaded 10-in midrange cone and a 1.4-in exit compression driver on a 90°x 45° constant directivity horn. Powering mode is switchable: bi-amplified (passive LF/MF crossover) or tri-amplified.

The KF695z Virtual Array™ system’s true 3-way design dramatically improves the quality of vocal reproduction while its cone-driven midrange horn extends pattern control into the lower octaves. Universal suspension hardware (flytrack with integral 3/8″-16 mounting point) supports permanent or portable applications. Six year warranty.

1. Compact Virtual Array™ three-way system
2. Vented, LF horn-loaded MF/HF (90° x 45° coverage pattern)
3. 15-in LF,10-in MF, 3-in voice coil/1.4-in exit HF
4. Switchable powering: Tri-amp or Bi-amp (passive LF/MF)
5. For portable use or permanent installation

Specification
  • CONFIGURATION
    Subsystem:
    Transducer: LF – 1x 15 in. cone; MF -1x 10 in. cone; HF – 1x.1.4 in. exit compression driver on constant directivity horn
    Loading: LF – Vented; MF – Horn-loaded; HF – Horn-loaded
    Operating Mode:
    Amplifier Channels: Switchable: bi-amplified (passive LF/MF crossover) or tri-amplified

  • PERFORMANCE
    Operating Range (-10 dB, Hz)
    50 – 17k
    Axial Sensitivity (1W @ 1m, dB SPL)
    LF: 100
    MF: 109
    HF: 110
    Passive LF/MF: 100
    Power Handling / Impedance (Watts @ Ohms)
    LF: 700 @ 8
    >MF: 400 @ 8
    HF: 160 @ 8
    Passive LF/MF: 700 @ 8
    Calculated Maximum Output Peak (dB SPL)
    LF: 135
    MF: 141
    HF: 138
    Passive LF/MF: 135
    Calculated Maximum Output Long Term (dB SPL)
    LF: 129
    MF: 135
    HF: 132
    Passive LF/MF: 129
    Nominal Coverage (degrees)
    Horizontal: 90
    Vertical: 45
    Subsystems
    LF: 15-in cone, vented
    MF: 10-in cone, horn-loaded
    HF: 1.4-in exit compression driver, horn-loaded
    Powering
    Switchable: bi-amplified (passive LF/MF) or tri-amplified

  • ORDERING DATA
    Versions
    KF695zP-WP Black 997248
    KF695z Black 997211
    Accessories     Part Number
        Caster Pallet KF650 KF695z[PLT6K]    255120

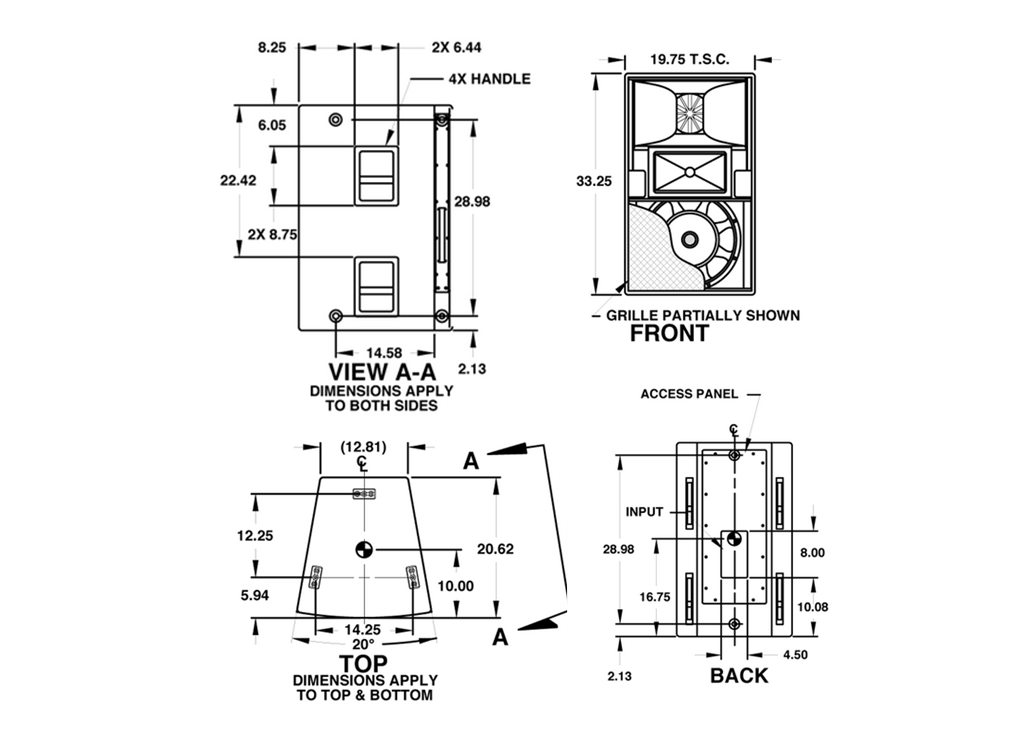

    Dimensions (inches/millimeters)
    Height: 33.30/845
    Width (front): 19.80/502
    Width (rear): 12.90/328
    Depth: 20.60/524
    Trap. Angle (degrees, per side): 10
    Weights (pounds/kilogram)
    Net: 135/61.4
    Shipping: 142/64.6
