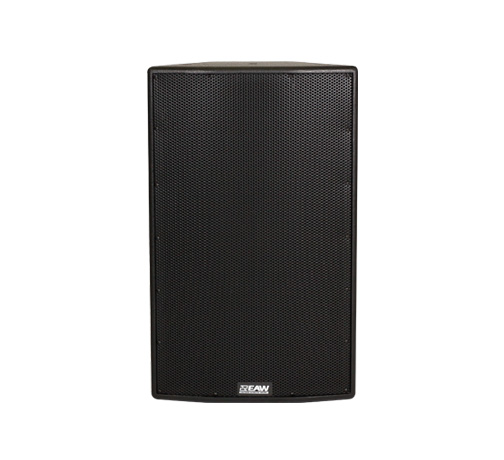

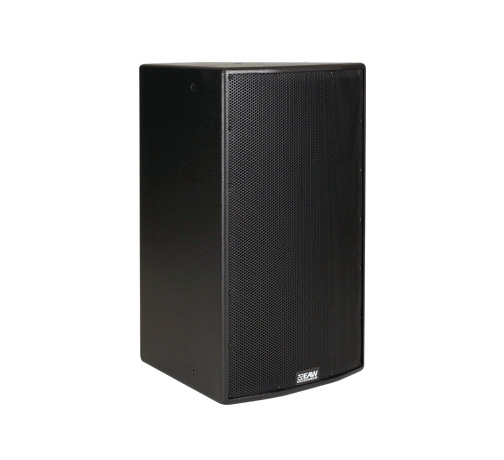

MK5326i/iU
Overview

The MK5300i Series of 2-way, high output, trapezoidal loudspeaker systems are designed as main PA elements for smaller venues, including small houses of worship and auditoriums/theaters, corporate A/V systems, hotel ballrooms and meeting rooms. The Series is also excellent for distributed or fill purposes in larger venues, including large houses of worship and auditoriums/theaters, arenas, stadiums, nightclubs, and themed-entertainment complexes.

To meet the design goals for the intended applications, EAW engineers developed a new, high performance, 3-inch voice coil, 1.4-in exit compression driver, loading it with a selection of six different HF horns with coverage patterns ranging from 60° x 45° to 120° x 60°. The horns are as large as the enclosure size allows to maintain consistent directivity throughout the HF passband. A 3-inch voice coil, 15-inch LF driver was used to complement the sonic character and output of the HF driver. All MK5300i models are carefully voiced to sound similar, permitting diverse horn patterns to be mixed throughout an installation while maintaining the same sonic quality. The result is clean, high-fidelity output at significantly higher levels than would be expected from loudspeakers of this size and price.

Users can select between single-amp and bi-amp (external processor) operating modes. In either operating mode, EAW’s beamwidth-matching crossover/ filter design delivers even power response throughout the crossover region, eliminating the discontinuities that plague other two-way loudspeakers.

The MK5300i Series systems are the larger companions to the MK2300i Series systems. Enclosures for both series are the same height, facilitating installation where more than one horn pattern and/or type of loudspeaker capability is needed. In addition, SBK Series subwoofers also share this height, creating attractive arrays that use EAW’s preconfigured accessory flybar.

• Premium Performance
• Application Flexibility

Specification
  • CONFIGURATION
    Subsystem:
    Transducer: LF – 1x 15 in. cone;  HF – 1x 1.4 in. exit, 3 in. voice coil compression driver
    Loading: LF – Vented; HF – Horn-loaded
    Operating Mode:
    Amplifier Channels: Single-amp LF/HF; Bi-amp LF, HF
    External Signal Processing: High pass filter; DSP w/2-way filters

  • PERFORMANCE
    Operating Range (-10 dB, Hz)
    48Hz – 17KHz
    Axial Sensitivity (1W @ 1m, dB SPL)
    LF: 98
    HF: 105
    Full Range: 98
    Power Handling/Impedance (Watts @ Ohms)
    LF: 800 @ 8
    HF: 150 @ 8
    Full Range: 800 @ 8
    Calculated Maximum Output Peak (dB SPL)
    LF: 133
    HF: 139
    Full Range: 133
    Calculated Maximum Output Long Term (dB SPL)
    LF: 127
    HF: 126
    Full Range: 127
    Nominal Coverage (degrees)
    Horizontal: 120
    Vertical: 60
    Powering
    Switchable: bi-amplified or passive

  • ORDERING DATA
    Versions
    MK5326i Black 2040040
    MK5326i White 2040041
    MK5326i-WP Black 2040042
    Accessories Part Number
    Eye Bolt 0.375-16 X 1.25 in, ACC-EB3825
    104001
    U-Bracket MK2(5)000 Black, UBKT2353
    0007869
    U-Bracket MK2(5)000 White, UBKT2353
    0015076
    Flybar SBK-MK53 VFS-VFR159 Black, FB5VSK
    2038320
    Dimensions (inches/millimeters)
    Height: 30.00/762
    Width (front): 18.71/475
    Width (rear): 8.88/226
    Depth: 19.73/501
    Trap. Angle (degrees per side): 15
    Weights (pounds/kilograms)
    Net: 77/34.9
    hipping: 87/39.5
