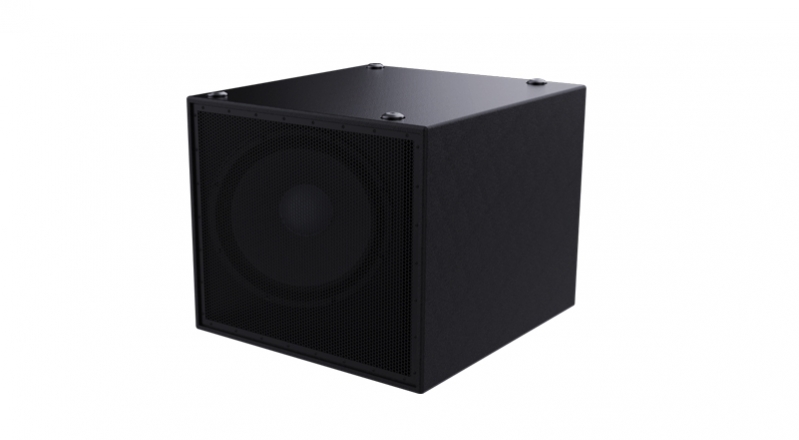

The new LS-118 Subwoofer uses a front-loaded, single 18-inch woofer that features a bent bass reflex port. It delivers excellent dynamics and output from a compact cabinet profile that can be easily ground-stacked or hung in multiples of two, three or four units. Rated to handle 2400 watts of program power and 3600 watts of peak power, this new model is compatible with Tectonic Distributed Mode Loudspeakers (DMLs) and other mid to high frequency speaker systems.
General
Woofer Size: 18.00″ (457mm)
Voice Coil Diameter: 4.00″ (100mm)
Magnet Type: Neodymium
High efficiency/low extension woofer design
Advanced neodymium magnetic motor structure
Lightweight 18-inch carbon fiber loaded cone with progressive, high excursion, constant geometry triple roll surround
Dual spider design with silicone based damping control
4-inch, inside/outside wound, high temperature composite polyamide coil assembly
Innovative voice coil ventilation system for higher output and less power compressionConstruction Features
Front Loaded with bent bass reflex porting
Hardware/Flyware: (8) M10 attachment points
Four bottom and four top feet allows cabinet to be stacked in a variety of positions
Locating and locking cutouts on top and bottom surfaces allows stacking of additional LS-118 and LS-212 cabinets
M20 pole mount top hat
Dimensions (inch): 27.55” W x 23.72” H x 29.52” D
Dimensions (mm): 700 W x 602.6 H x 750 D
Weight (lbs/kg): 115 lbs. (52Kg)Performance Specifications
Frequency Response: 36Hz – 120Hz (-3dB)
32Hz – 140Hz (-10dB)
Sensitivity: 98dB @ 1W/1 Meter
Max SPL Long-term: 130dB
Max SPL Peak: 136dB
Recommended high pass: 24 db/Oct at 35 HertzSettings & Impedance
Nominal Impedance: 8 Ohms, NL4 connector can be used to connect 2 cabinets in parallel (4 ohms) as well as passing signal thru for connection to another LS-118 running in 8 ohm mode
Amplification
Continuous Power Rating: 1200W AES (8 Ohms)
Program / Peak Power: 2400W/3600W (8 Ohms)
Recommended Amplification: 3000W (8 Ohms)Suggested filter sets, crossover types, and slopes are intended to provide a basic starting point for operation.
For further assistance please contact Technical support.Specifications
WOOFER SIZE 18.00” (457mm)
VOICE COIL DIAMETER 4.00” (100mm)
MAGNET TYPE Neodymium
