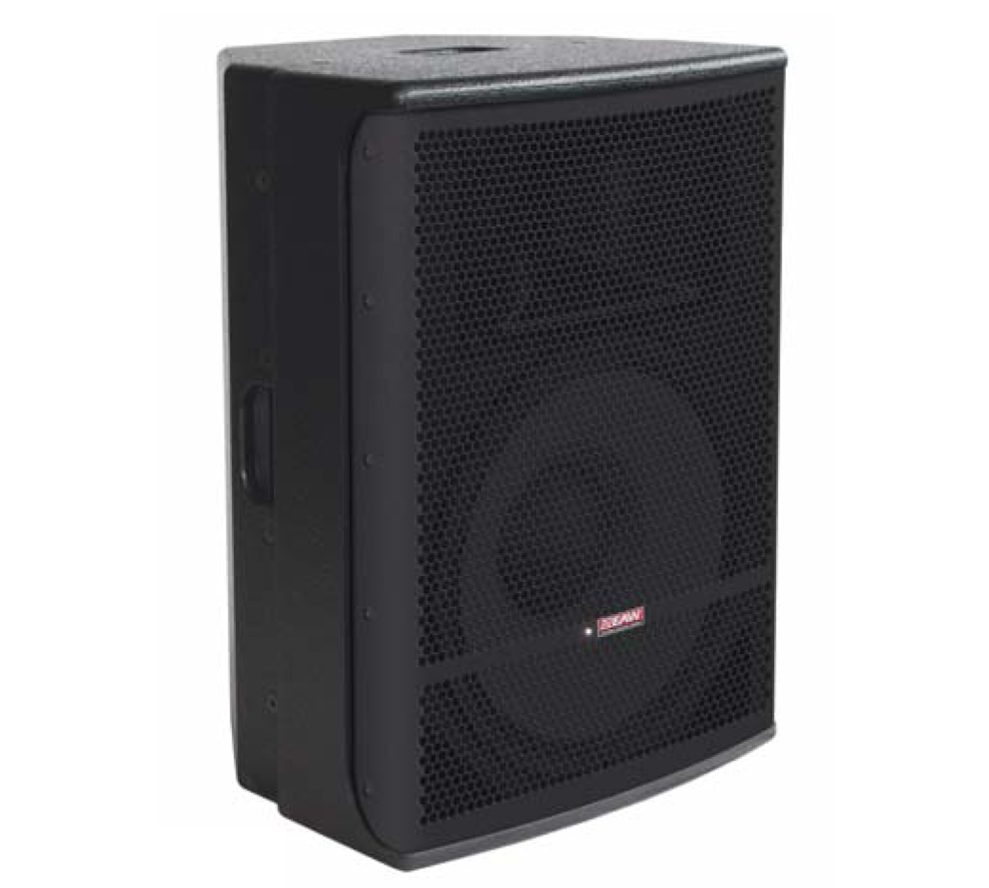

The JFNT Series of comprehensively integrated 2-way sound reinforcement systems elevate the notion of power and utility. Each JFNT features premium neodymium components, 1500W of amplification, revolutionary EAW Focusing processing, EAW Pilot software-accessible front-end DSP, the proprietary U-Net audio and communications network and the JF Series adaptable enclosure design.
All models natively offer a combination of portable features and M10 installation points. Available universal accessories include trim plates that hide handles and provide a connection point for u-brackets and quick release flytrack segments that integrate into any enclosure and adjustable legs for use as a stage monitor.
●Comprehensive integration
●EAW Focusing
●U-Net (audio and communications network)
●EAW Pilot Control and communications
●1500 watts of class leading power
Transducer: LF 1x 15 in. cone; HF 1x 1.4 in. exit, 3 in. voice coil compression driver Loading: LF – Vented; HF – Horn-loaded Operating Mode: Amplifier Channels: Bi-amp LF, HF Internal Signal Processing: DSP w/ EAW Focusing PERFORMANCE Operating Range (-10 dB, Hz) 47 – 20k Internal Amplifier (Watts @ Ohms) LF (per channel): 1000 @ 4 HF (per channel): 500 @ 4 Calculated Maximum Output Peak (dB SPL) Full Range: 131 Calculated Maximum Output Long Term (dB SPL) Full Range: 125 Nominal Coverage (degrees) Horizontal: 90 Vertical: 45 Subsystems LF: 15-in cone, vented HF: 1.4-in exit compression driver, horn-loaded Powering Bi-amplified, internal Connectors XLR analog or AES/EBU with loop through, 2x U-NET, USB, PowerCon ORDERING DATA Versions JF59NT Black Active Speaker 115V 2034645-00 JF59NT Black Active Speaker 230V 2034645-01 Accessories Part Number M10 × 37mm Forged Shoulder Eyebolt 0029818 U-Bracket Adjustable S1 BLK [UBKT-S1] 2035474 Leg Adjustable S (2 Per) [ACC-LGS] 2035438 Flytrack S (2 Per) [ACC-FTS] 2035439 Cover Plate S (2 Per) BLK [ACC-CPS] 2035473 Fly Clip with Ring 0001386 Dimensions (inches/millimeters) Height: 25.50/648 Width (front): 18.32/165 Width (rear): 8.86/225 Depth: 17.13/435 Trap. Angle (degrees per side): 33.3 Weights (pounds/kilograms) Net: 72/33.7 Shipping: 83/38.6 Download the JF59NT Spec Sheet
