VRM212
Overview

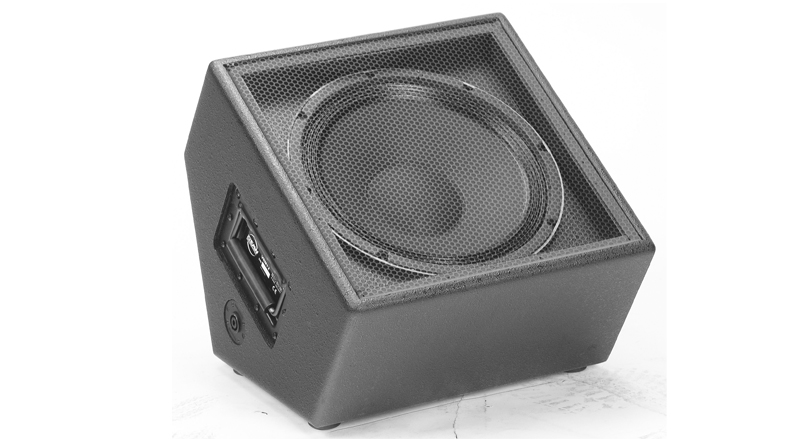

The VRM212 is engineered for superior performance as a floor monitor and as a stand-mounted portable PA speaker. The low-profile, dual-angle enclosure houses a 12-inch coaxial driver that cuts through stage volume with high output capability. Coherent pointsource reproduction helps deliver crisp speech for meetings and presentations, while the12-inch LF driver delivers full range musical sound.

The plywood enclosure includes loop-thru Neutrik NL4 Speakon jacks on either side to minimize cable runs and clutter on stage. Rubber feet stabilize the enclosure on the floor. A pole mount cup and integral handle are included for stand-mounting and transport.

The VRM212 is available in black finish. A foam-backed powder-coated steel grille protects the driver. The entire loudspeaker is fully tested at the time of manufacture and is warrented to be free from defects in materials and workmanship for a period of five years from the date of purchase.

FEATURES
.Coaxial 12-inch/1-inch full range driver
.Wide-angle 90° x 90° (nominal) HF beamwidth
.Enclosure has both 30° and 45° wedge angles
. Pole mount cup allows use as portable PA
·Integral passive crossover network allows economical single-amplifier powering

Specification
  • PRODUCT DATA
    Model Name   VRM212
    Part Number   2045737-90

  • SPECIFICATION SHEET TABULAR DATA:
    Descriptive Data
    Ways    Type    Mode
    2-way    Full-Range   Single Amp

  • CONFIGURATION
    SubsystemTransducer    Loading
    LF   1x12 in cone — Sealed
    HF   1x1 in exit compression driver — Horn-loaded

  • PERFORMANCE
    Operating Range   73 Hz to 20000 Hz
    Nominal Beamwidth
    Horizontal    90°
    Vertical   90°
    Axial Sensitivity (whole space SPL)
    94 dB   73 Hz to 20000 Hz
    Peak Sensitivity (whole space SPL)
    97 Db  20 Hz to 20 kHz
    Input Impedance (ohms) Nominal    Minimum
    8     6.6 @ 200 Hz
    Recommended High-Pass Filter
    High Pass => 60 Hz, 24 dB/octave Butterworth
    Power Handling (preliminary)
    300 W    49 V @ 8 ohms
    Calculated Maximum SPL (preliminary)
    Average     Peak
    119 dB    125 dB
