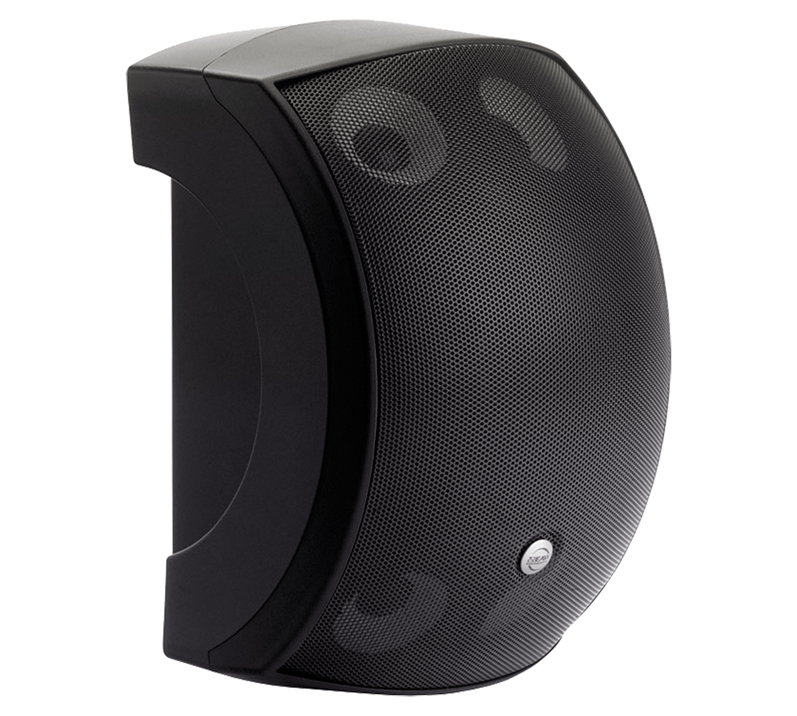

SMS2124 TWO-WAY SURFACE-MOUNTED LOUDSPEAKER
Overview

The SMS2124 significantly advances small loudspeaker technology in providing superior voice intelligibility, coherence and pattern control, combined with convenient, flexible mount capabilities.

The two-way SMS2124 (4 x 3-inch LF, 2 x 2-inch HF array, 120-degree by 40-degree coverage pattern) incorporates proprietary Theta Technology™, with the LF drivers configured in a precise arrangement to provide excellent pattern control and coherency below the LF/HF crossover. The LF drivers also couple at lower frequencies, providing LF output of a much larger driver without sacrificing sound quality through the crossover region. The custom high-power HF driver complements the LF subsystem throughout the critical speech range.

The SMS2124 is designed for surface mounting using the proprietary Clip-Fit™ system. All connections for the loudspeaker are contained within the Clip-Fit wall-mount unit via a single Molex connector, with the wall-mount unit pre-mounted at the preferred position on a wall. The installer then just “clips” the loudspeakers onto the Clip-Fit arm, and in one motion, the audio connection is terminated and the loudspeaker is live. The wall-mount unit offers a pan/tilt positioning range for precise aiming. For basic installations, SMS loudspeakers are also provided with U-brackets.

Specification
  • Transducer: LF 4x 3-in cone; HF 2x 2-in. cone Loading: LF Vented; HF: Horn Loaded Amplifier Channels: Single-amp LF/HF External Signal Processing: High Pass Filter Operating Range (-10 dB, Hz) Full Range: 90 – 20k Axial Sensitivity (1W @ 1m, dB SPL) Full Range: 90 Power Handling/Impedance (Watts @ Ohms) Full Range: 125 @ 8 Calculated Maximum Output Peak (dB SPL) Full Range: 117 Calculated Maximum Output Long Term (dB SPL) Full Range: 111 Nominal Coverage (degrees) Horizontal: 120 Vertical: 40 SMS2124 Black 0018517 SMS2124 White 0018518 Clip Fit, Lo-Z Black, CF-2LZ 0023515 Clip Fit, Lo-Z White, CF-2LZ 0023516 Clip Fit, 70/100 V Black, CF-2TX 0023521 Clip Fit, 70/100 V White, CF-2TX 0023522 Height: 12.00/304.8 Width: 7.62/193.5 Depth: 8.26/209.7 Weights (pounds/kilograms) Net: 6.2/2.8 Shipping: 10.7/4.9
